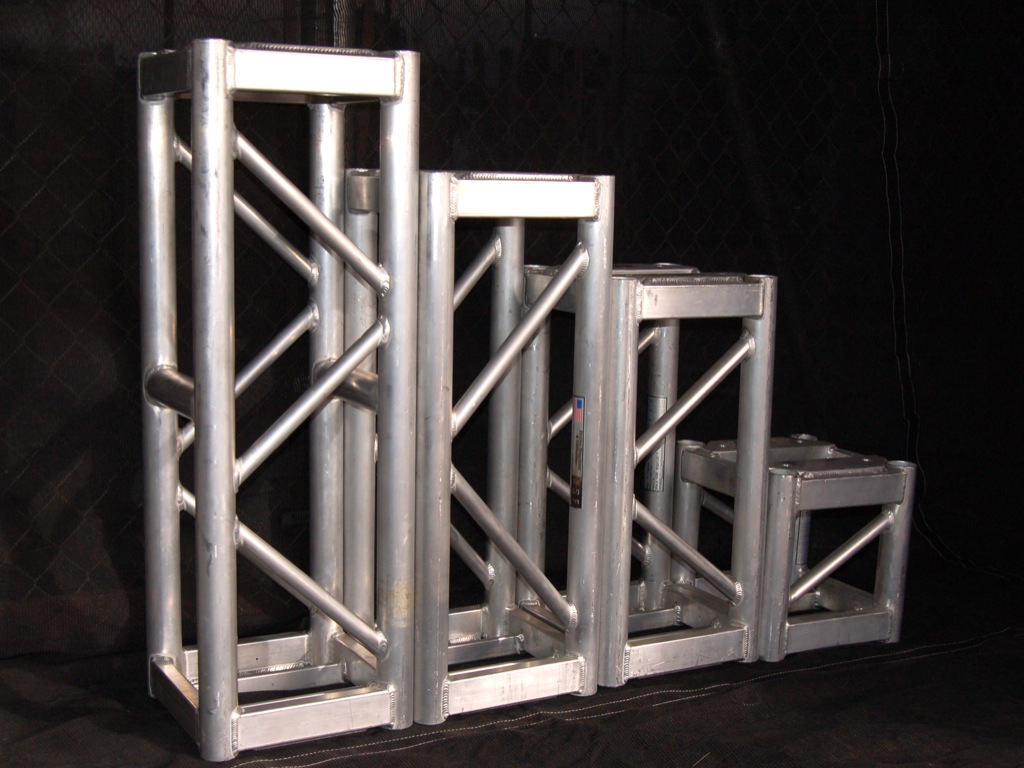

Our high quality truss is available with three connection options: Plated, Fork Ended and XLoc System. As a Master Stocking Distributor for XSF - Xtreme Structures & Fabrication we inventory a large selection of straight and circular trussing.

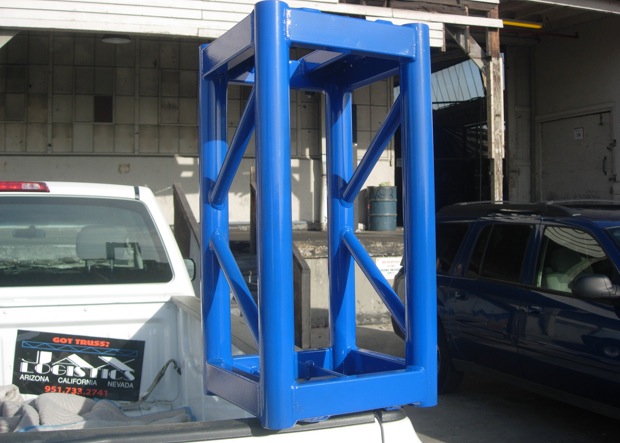

Alternate Images

•
•
•

Available in plated, fork ended, and XLoc
Main chords are 2.0" OD x 3/16" wall aluminum
Diagonals are 1.0" OD x 1/8" wall aluminum

Bolt plate connection for use with 5/8" bolts
Fork end connection for use with 3/4" clevis pins
No connection hardware required for XLOC

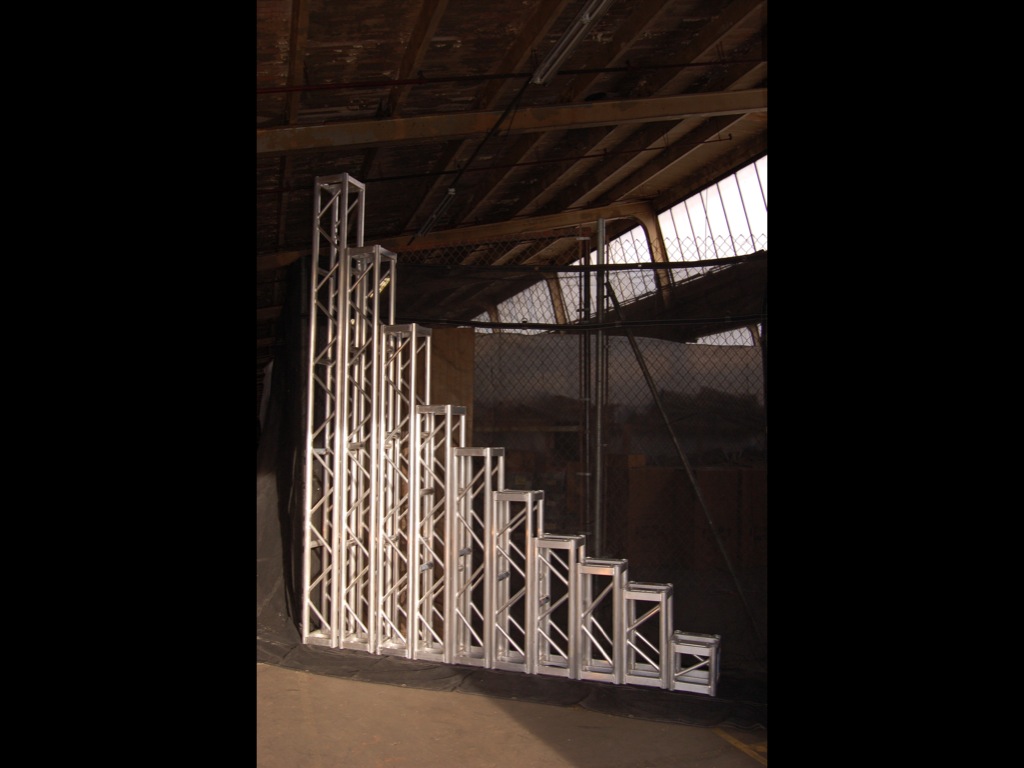

Standard lengths: 10', 8', 5', 4', 2.5', 2'
Colors: Bare metal, red, black, blue
Custom lengths available
Click HERE for load table
